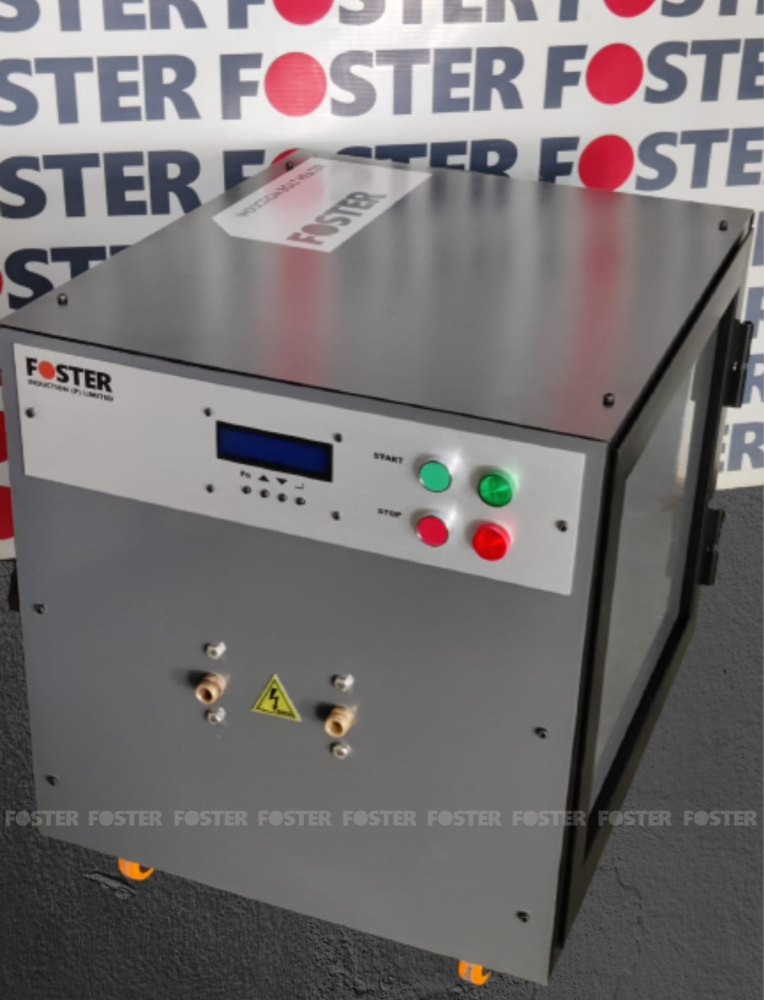

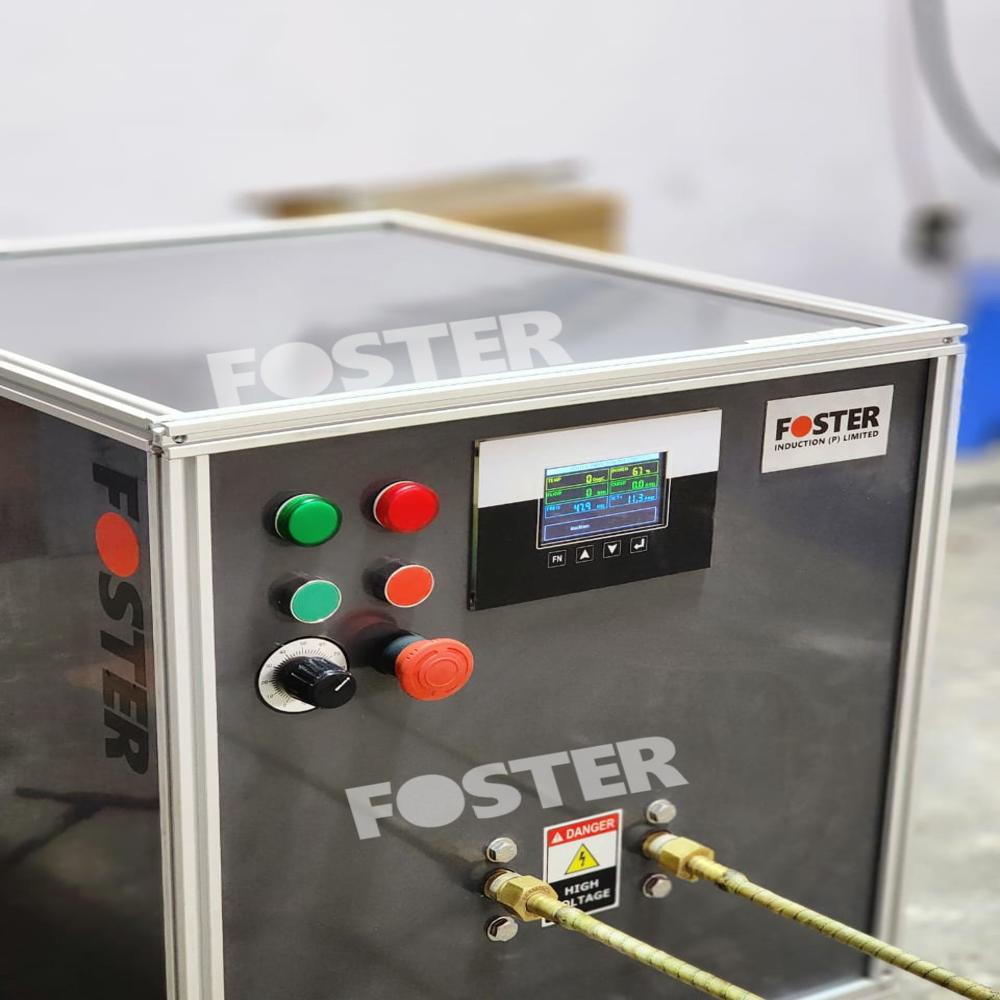

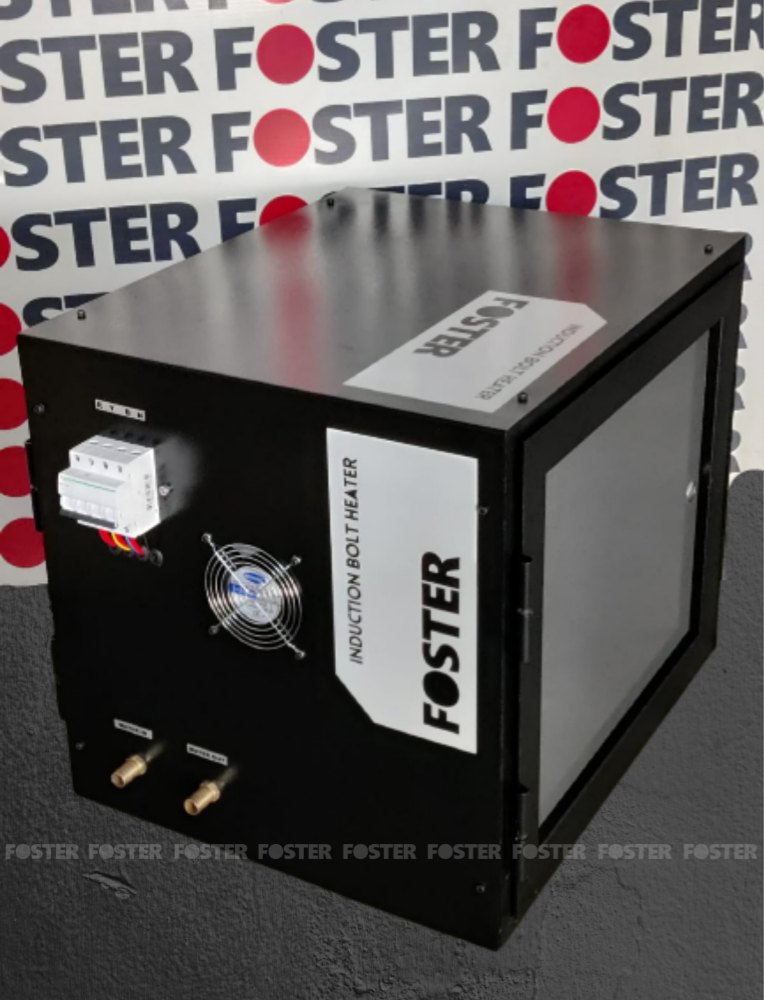

Induction Bolt Heating Machine

About Induction Bolt Heating Machine

What isbolt heating machine?

Expanding bolts with induction is the proven time- and labour-saving alternative to inefficient flame and resistance heating. With induction, a specially designed coil is inserted into the turbine bolt. Rapid, precisely controlled and localized heat is then induced directly in the bolt. The heat expands the bolt by an exact, pre-decided length, making it easy to remove the nut.

What are the benefits

Foster Inductionheat spreading is very accurate, due to the heat being generated within the component, you only heat the part you want to heat, and thus the bolt threads with nuts stay cold during the heating operation.
The heating process is very fast and accurate there simply isnt enough time for heat to travel into the thread area. And with induction there is no risk of rods melting inside the bolts.

In the bolt expansion process, focus on safetyis vital for a consistent result and for avoiding damage to either personnel or the expansion bolt itself. It is very safe and easy method to heat power turbine nut bolt.

Its precise and localized heat is faster and saferthan resistance and flame heating process.

Compact induction:
You can move it around a workshop or factory floor.
Flexible:It can be fitted with various coils for various bolt dimensions. Induction coils can be changed in seconds.

Reduced costs: Fasterheat delivery, reduce the heating expenses compared to flame based high cost heating methods.

Improved quality:Precise repeatability of heating cycles is assured. The same amount of energy is applied to each bolt. A constant energy level and heating time is guaranteed.

Eco-friendly:No flames, no gas and virtually no radiant heat means a more comfortable, more productive working environment. Save energy-save environment.

FOSTER offers high-performanceInduction Bolt Heating Machinesdesigned for quick, safe, and efficientheating of large bolts, studs, and fasteners. Ideal for applications where conventional heating (torch/flame) is slow or risky, our machines useprecision induction technologyto deliver localized heat in seconds enabling easy loosening or tightening of critical bolts.

Key Features:

• Flameless Heating No open flame, safe for explosive zones

• Rapid Heat-Up Heats bolts within seconds

• Targeted Heating Only the bolt heats, not surrounding metal

• Digital Temperature Control

• Ideal for Frequent Maintenancein heavy industries

Technical Specifications:

• Brand:FOSTER

• Power Rating:5 kW to 50 kW

• Voltage:3 Phase, 415V, 50/60 Hz

• Heating Time:1090 seconds (depending on bolt size)

• Cooling:Water Cooled

Applications:

• Power Plants (Turbine Maintenance)

• Oil & Gas Refineries

• Mining & Heavy Machinery Maintenance

• Shipyards & Marine Engines

• Petrochemical Plants

• Heavy-Duty Equipment Servicing

Advantages:

• Safer Alternative to Flame Heating

• Reduces Downtime during Maintenance

• Easy to Operate No special skills required

• Precise and Repeatable Heating Cycles

• Custom Coils Available for Unique Bolt Sizes/Shapes

CONTACT OUR SALES ENGINEERS NOW

Efficient Industrial Heating

Our Induction Bolt Heating Machine is specifically built for industrial use, delivering swift and uniform heating for bolts of various sizes. With its powerful 25KW input and dedicated safety features, it ensures uninterrupted and accurate heating, reducing downtime and improving workplace productivity.


Advanced Safety Features

Equipped with comprehensive temperature protection, the machine offers safe operation during intense industrial work. The efficient water-cooling system maintains consistent performance, even under prolonged use, while preventing overheating and ensuring equipment longevity.


Versatility and Reliability

Fabricated from durable mild steel and conforming to standard sizes, this bolt heating machine caters to a broad spectrum of industrial requirements. Its reliable performance, paired with ease of use, makes it a preferred choice for manufacturers and maintenance teams across India.
